Features:
- 15 times faster than conventional mass finishing
- Improved surface finish & reduced impingement
- Variable Speed control
- Dual Voltages with CE Quality Control
- Tilt Down Design for Easy unloading
- Push-Button operation
- Easy Access Control Box
- U.S. Made Uniroyal Polyurethane Liner
1. Precision Centrifugal Disk Finishing Machine with converter, hand-unload, gap between disc & bowl: 0.15- 0.20mm, for thickness 0.5 ( 20L) or 1mm ( 38L) Min. worpiecesItems vessel
volumecarrying
capacityBowl
size(mm)PU
thickness(mm)Machine
weight(Kg)motor
power(Kw)Dimension(mm) disk rotate speed(rpm)
LDG-DF20 WET 20L x 1 9L x 1 350 x 240 20 140 0.75 690 x 850 x 1440 0-400 LDG-DF20 DRY 20L x 1 9L x 1 350 x 240 20 140 0.75 690 x 850 x 1440 0-400 LDGDF20 x 2 20L x 2 9L x 2 350 x 240 20 235 0.75 x 2 1170 x850 x 1440 0-400 LDG-DF20 x 3 20L x 3 9L x 3 380 x 250 20 330 0.75 x 3 1680 x850 x 1440 0-400 LDG-DF38 WET 38L x 1 25L x 1 380 x 250 20 220 2.2 880 x780 x 1450 0-400 LDG-DF38 DRY 38L x 1 25L x 1 380 x 250 20 220 2.2 880 x780 x 1450 0-400 LDG-DF38 x 2 38L x 2 25L x 2 380 x 250 20 370 2.2 x 2 1480 x780 x 1450 0-400 LDG-DF38 x 2 38L x 3 25L x 3 380 x 250 20 530 2.2 x 3 2120 x780 x 1450 0-400
2. High precision Centrifugal Disk Finishing Machine with converter, hand-unload, gap between disc & bowl: wet type: 0mm, for thickness 0.1mm Min. worpieces; dry type: 0.05mm, for thickness 0.15mm workpiecesItems vessel
volumecarrying
capacityBowl
size(mm)PU
thickness(mm)Machine
weight(Kg)motor
power(Kw)Dimension(mm) disk rotate speed(rpm)
LDG-KF18W 18L x 1 9L x 1 330 x 180 6 100 1.5 600 x 600 x 1500 130-250 LDG-KF18D 18L x 1 9L x 1 330 x 180 6 100 1.5 600 x 600 x 1500 130-250 LDG-KF18x2 18L x 2 9L x 2 330 x 1840 6 100 x 2 1.5 x 2 1200 x 600 x 1500 130-250 LDG-KF18 x 3 18L x 3 9L x 3 330 x 1850 6 100 x 3 1.5 x 3 1800 x 600 x 1500 130-250 LDG-KF32W 32L x 1 25L x 1 430 x 230 6 120 2.2 700 x 750 x 1600 130-250 LDG-KF32D 32L x 1 25L x 1 430 x 230 6 120 2.2 700 x 750 x 1600 130-250 LDG-KF32 x 2 32L x 2 25L x 2 430 x 230 6 120 x 2 2.2 x 2 1400 x 750 x 1600 130-250 LDG-KF32 x 3 32L x 3 25L x 3 430 x 230 6 120 x 3 2.2 x 3 2100 x 750 x 1600 130-250 LDG-KF50W 50L x 1 42L x 1 500 x 280 6 150 2.2 800 x 800 x 1600 130-250 LDG-KF50D 50L x 1 42L x 1 500 x 280 6 150 2.2 800 x 800 x 1600 130-250 LDG-KF50 x 2 50L x 2 42L x 2 500 x 280 6 150 x 2 2.2 x 2 1600 x 800 x 1600 130-250 LDG-KF50 x 3 50L x 3 42L x 3 500 x 280 6 150 x 3 2.2 x 3 2420 x 800 x 1600 130-250
3. Centrifugal Disk Finishing Machine with small polishing barrels, hand unload
Items vesse
l volumecarrying
capacityBowl
sizePU
thicknessMachin
weightmotor
powerDimensio
n( cm)disk rotate speed
LDG6x1-T 6L 3L 210 x 190 10 100 0.37 560 x 660 x 1310 0-400rpm LDG6x2-T 6L x 2 3L x 2 210 x 190 10 180 0.37 x 2 960 x 660 x 1310 0-400rpm LDG6x3-T 6L x 3 3L x 3 210 x 190 10 220 0.37 x 3 1380 x 660 x 1310 0-400rpm LDG10x1-T 10L 5L 280 x 220 10 180 0.55 700 x 800 x 1400 0-350rpm LDG10x2-T 10L x 2 5L x 2 280 x 220 10 240 0.55 x 2 1100 x 800 x 1400 0-350rpm LDG10x3-T 10L x 3 5L x 3 280 x 220 10 250 0.55 x 3 1500 x 800 x 1400 0-350rpm
4. Centrifugal Disk Finishing Machine with converter, hand-unloadItems vessel
volumecarrying
capacityBowl
sizePU
thicknessMachine
weightmotor
powerdimension disk rotate speed
LDG50-T 50L 25L 470X260 25 300 1.5 1000 x 650 x 1120 0-180rpm LDG80-T 80L 40L 540X300 25 400 2.2 1030 x 740 x 1220 0-170rpm
5. Centrifugal Disk Finishing Machine with converter, electric unloadItems vessel
volumecarrying
capacityBow
lsizePU
thicknessMachine
weightmotor
powerdimension disk rotate speed
LDG50B-T 50L 25L 470x260 25 360 1.5 1040x640x1140 0-180rpm LDG80B-T 80L 40L 660x340 25 500 2.2 1100x740x1220 0-180rpm LDG120B-T 120L 60L 660x340 30 1000 4.0 1400x1300x1380 0-180rpm LDG240B-T 240L 120L 800 x510 30 1100 5.5 1620x1480x1500 0-130rpm
6. Centrifugal Disk Finishing Machine with converter & separator, automatic unloadItems vessel
volumecarrying
capacityBowl
sizePU
thicknessMachine
weightmotor
powerdimension disk rotate speed
LDG50D-T 50L 25L 470x260 25 350 1.5 1040 x 1160 x 1140 0-180rpm LDG120D-T 120L 60L 640x280 30 900 4 1600 x 1320 x 1340 0-170rpm LDG240D-T 240L 120L 840 x400 30 1100 5.5 1620 x 1720 x 1700 0-130rpm
7. Centrifugal Disk Finishing Machine with full automatic PLC control ( loading, finishing, unloading, separating)Items vessel
volumecarrying
capacityBowl
sizePU
thicknessMachine
weightmotor
powerdimension disk rotate speed
LDG80E-T 80L 40L 540x300 25 900 1.5 1530 x 1520 x 1240 0-180rpm LDG120E-T 120L 60L 660x280 30 1200 4 2060 x 1860 x 1600 0-180rpm LDG240E-T 240L 120L 800 x510 35 1600 5.5 2400 x 1980 x1600 0-140rpm Items vessel
volumecarrying
capacityBowl
sizePU
thicknessMachine
weightmotor
powerdimension disk rotate speed
LDG80x2E-T 80Lx2 40Lx2 540x300 25 1500 1.5x2 2130 x 1520 x 1240 0-180rpm LDG120x2E-T 120Lx2 60Lx2 660x280 30 20000 4.0x2 2560 x 1860 x 1600 0-180rpm LDG240x2E-T 240Lx2 120Lx2 800 x510 35 2600 5.5x2 2900 x 1980 x 1600 0-140rpm
Product Groups
Contact Us
Address: 15 Minhang Road, Zhengzhou China 450012
Mobile: 86-13607668219
Fax: 86-371-65951064
E-mail: yusonfinishing@gmail.com
Mobile: 86-13607668219
Fax: 86-371-65951064
E-mail: yusonfinishing@gmail.com
Home > Products > Deburring & Finishing machine > Centrifugal Disc Finishing Machine /

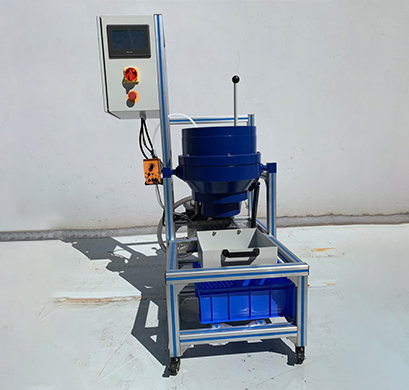

Centrifugal Disc Finishing Machine
Centrifugal disc finishing machines are ideal finishing machines with faster processing speed, lower noise and economical operating cost in a compact, efficient machine design The smooth flow of media and parts is produced by the rotating bottom disk and stationary wall design. Centrifugal force is generated by high speed rotation of the bottom disk. We offer these machines in wide range of capacities, from manual to auto tilting.
